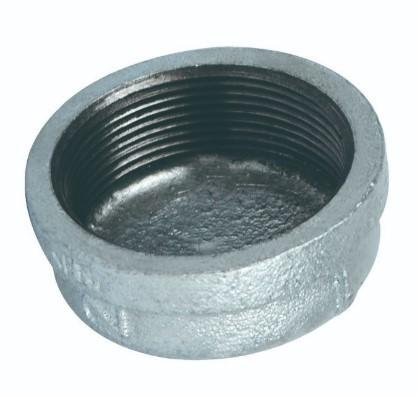

Welding 1/6 10mm 12mm Copper Pipe Threaded End Cap

Ask Lasest Price
Brand Name :	METAL
Model Number :	Butt Welding Fittings
Certification :	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Price :	Depending on quantity
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	3,0000pcs per month
Delivery Time :	20-35 Days

Add to Cart

Product Details
Company Profile

Welding 1/6 10mm 12mm Copper Pipe Threaded End Cap

Custom Copper Welding Pipe Fittings End Caps For Copper Pipe

Copper Nickel End Cap

The table here shows copper nickel end caps’ dimensions & sizes according to Europe standards like EEMUA, DIN & Similar. Furthermore it has details for both seamless and seam welded copper nickel end cap variants. It also lists Wall Thickness (WT) and Theoretical Weight for the pipes which can withstand pressure of 10 bar, 14 bar, 16 bar, 20 bar respectively.

At Cunimet Alloy International, we manufacture and export cupronickel end caps strictly following the below mentioned Europe Standards, other international standards or as per the specifications mentioned by the client.

CuNi End Cap - DIN 86088, similar

10 BAR – Material: CuNi10Fe1Mn

OD		WT	HEIGHT		THEORETICAL WEIGHT
Nominal	Actual	e	h1	h4	THEORETICAL WEIGHT
inch	mm	mm	mm	mm	kg/piece

	SEAMLESS
1	30	1,5	14	5	0,07
1 1/4	38	1,5	14	605	0,1
1 1/2	44,5	1,5	14	8	0,12
2	57	1,5	18	10	0,18
2 1/2	76,1	2	18	14	0,31
3	88,9	2	20	16	0,39
4	108	2,5	20	20	0,75
5	133	2,5	20	24	0,95
6	159	2,5	20	29	1,35
7	193,7	2,5	20	36	1,95
8	219,1	3	20	41	2,6
10	267	3	20	50	3,85
12	323,9	4	20	61	6,6
14	368	4	20	69	8,8
16	419,1	4	20	79	12,2
18	457,2	4	20	87	12,55
20	508	4,5	20	96	18,8
24	610	5	20	115	26,7

14 BAR – Material: CuNi10Fe1Mn

OD		WT	HEIGHT		THEORETICAL WEIGHT
Nominal	Actual	e	h1	h4	THEORETICAL WEIGHT
inch	mm	mm	mm	mm	kg/piece

	SEAMLESS
1	30	1,5	14	5	0,07
1 1/4	38	1,5	14	605	0,1
1 1/2	44,5	1,5	14	8	0,12
2	57	1,5	18	10	0,18
2 1/2	76,1	2	18	14	0,31
3	88,9	2,5	20	20	0,75
4	108	2,5	20	20	0,75
5	133	3	20	24	1,2
6	159	3	20	29	1,6
7	193,7	3	20	36	2,4
8	219,1	3,5	20	41	3,1
10	267	4	20	50	4,85
12	323,9	5	20	61	8,2
14	368	5,5	20	69	12,6
16	419,1	6	25	79	17,4
18	457,2	6	25	87	17,9
20	508	6,5	25	96	26,35
24	610	8	35	115	49,5

CuNi End Cap - EEUMA 146 Standards

16 BAR – Material: CuNi10Fe1Mn, CuNi30Fe1Mn

OD		WT	HEIGHT	THEORETICAL WEIGHT
Nominal	Actual	e	h1 + h4	THEORETICAL WEIGHT
inch	mm	mm	mm	kg/piece

	SEAMLESS
1 1/2	44,5	2,5	19,6	0,13
2	57	2,5	22	0,19
2 1/2	76,1	2,5	25,7	0,31
3	88,9	2,5	28,2	0,4
4	108	3	31,7	0,75
6	159	3	41	1,5
8	219,1	4	55	2,75
10	267	4,5	69	4,9
12	323,9	5,5	80	9,17
14	368	6,5	93	14,05
16	419,1	7	102	18,6
18	457,2	8	119	22,75
20	508	8,5	129	31,7
24	610	10,5	148	56,16
28	711	12	176	85,55
32	813	13,5	200	125,4
36	914	15,5	221	175,4
